Spec
Product Name: Electronic Acupuncture Therapeutic Apparatus
Volume: 240×177×64mm
Peak output voltage: not more than 500V (250Ω load)
Input power: DC 9V is 0.8VA; AC-DC converter is 5VA
Maximum effective value of output current: no more than 10mA
The rated load impedance of the electroacupuncture instrument:
a) The patch electrode is 500Ω;
b) The milli-needle electrode clamp is 250Ω

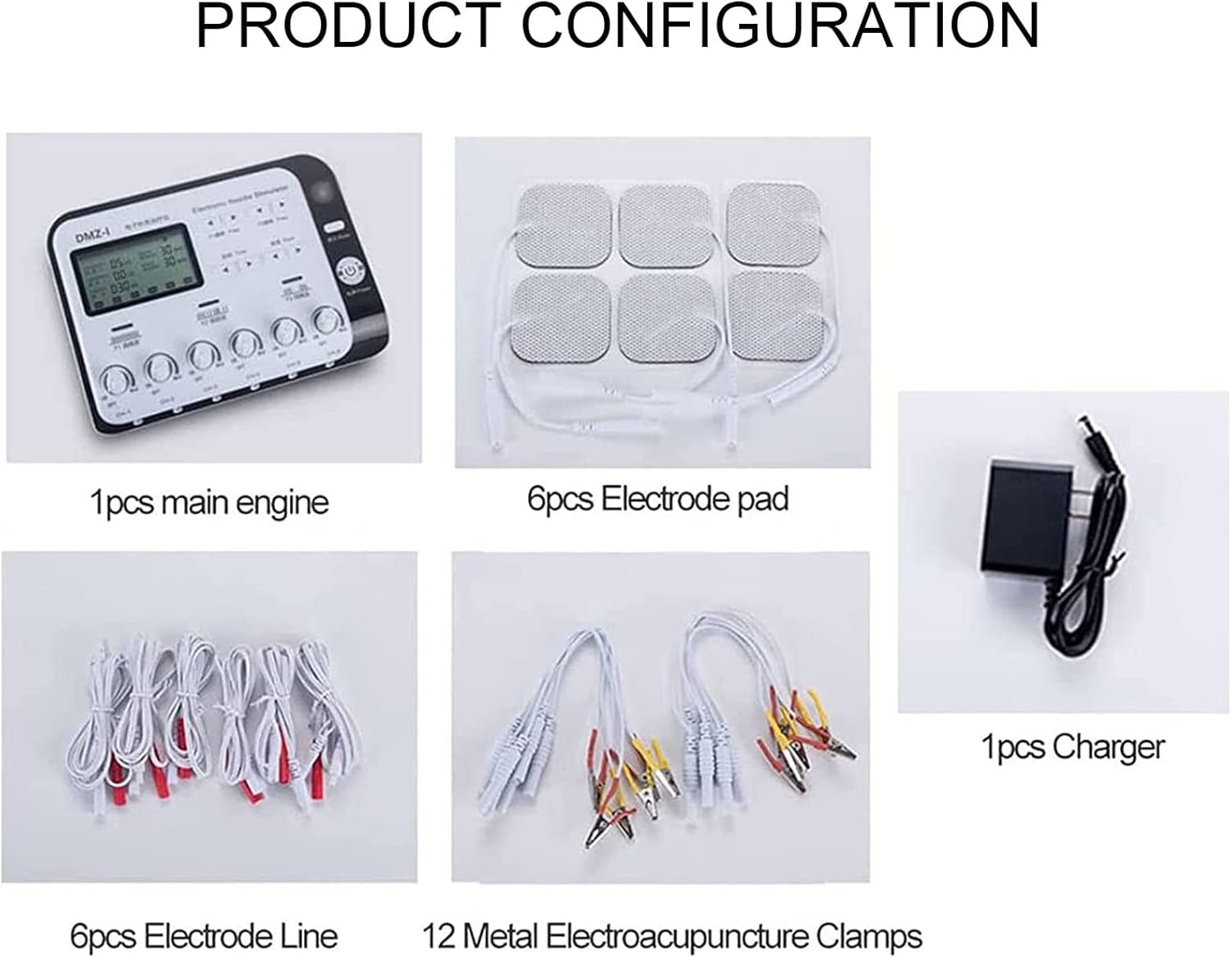

Packing Including:
1 x Charger
1 x Main Engine
6 x Electrode Pad
6 x Electrode Line
12 x Metal Electroacupuncture Clamps

Instructions
Before use, it is best to wipe the area to be treated with a hot towel or medical alcohol. All the intensity adjustment knobs must be set to 0 before starting the output, otherwise the alarm prompt will not work.

Prepare
Insert the output wire into the jack of the skin electrode; peel off the release paper on the skin electrode, and paste it on the part to be treated, insert the other end of the electrode output wire into the output jack, and the treatment should be done first from the jack Unplug the output cord and remove the skin electrode.

If electroacupuncture is used, insert the electrode output wire into the filiform needle electrode clip, and then clamp the filiform needle electrode clip on the handle of the acupuncture needle that has been acupuncture. When using electroacupuncture, it must be used by professional acupuncturists and strictly follow the electroacupuncture operating procedures.
