Specification:
These connectors are used to connect the receiver to different models and flight controls
PPM signal connector: outputs the standard PPM signal.
I-BUS / S.BUS signal connector: outputs the i-BUS / S.BUS signal with up to 18 channels.

Binding
1. Turn on the receiver while holding down the binding button. When the LED of the receiver flashes, it means that the binding mode has been activated.
When the binding is successful, the LED of the receiver starts to flash more slowly.
2. On the transmitter, exit the binding menu manually. Once you leave the binding menu, the LED of the receiver stops flashing and remains permanent.
3. Check if the model and receiver are working as expected. If something is not working properly, restart this process from the start.

Change the i-BUS / S.BUS mode.
When power on and binding, the transmitter and receiver can change the output mode to i-BUS and S.BUS mode by holding the Bind button for 2 seconds.
The LED goes out for 1 second and then flashes twice: i-BUS output mode active.

Description:
Channels: PPM 8CH, i-BUS 18CH
Model Type:Multi Rotor
Frequency range: 2.408-2.475 GHz.
Bandwidth: 500 kHz.
Band number: 135.
Reception sensitivity: -92 dBm.
2.4 GHz system: AFHDS 2A.
Modulation type: GFSK
DSC port: PPM / i-BUS / S.BUS
Transmission method: FHSS
Data output: 1.5 mm x 3-pin PPM / i-BUS / S.BUS
Input power supply: 4.0-8.4V
Display method: LED.
No ground interference (send and receive 1 m from the ground): > 300 m.
Working current: 40 mA.
Channel Delay: <15ms
Compatible Transmitter: Compatible with FS-i4, FS-i6, FS-i6S, FS-i6X, FS-i10, FS-GT2E, FS-GT2G, FS-GT2F

Box contents:

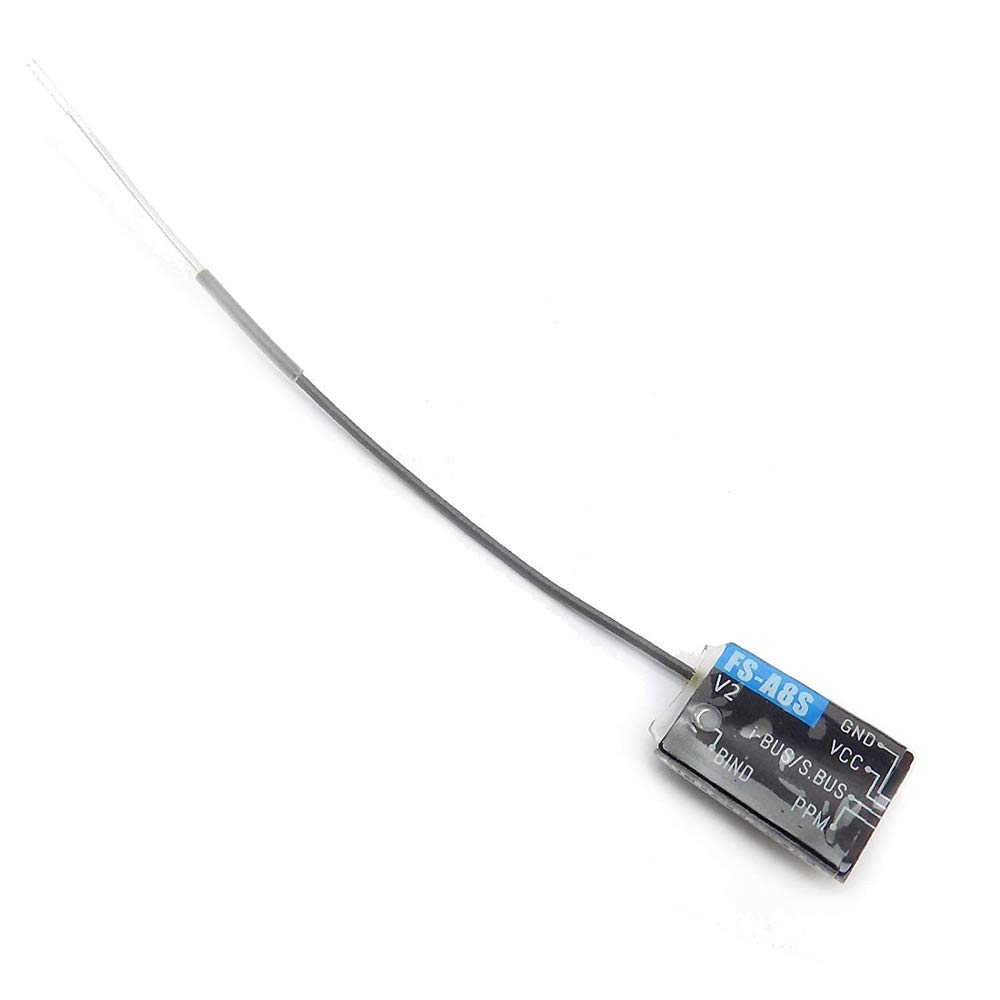

1 x FS-A8S V2 2.4G 8CH Mini Receiver
